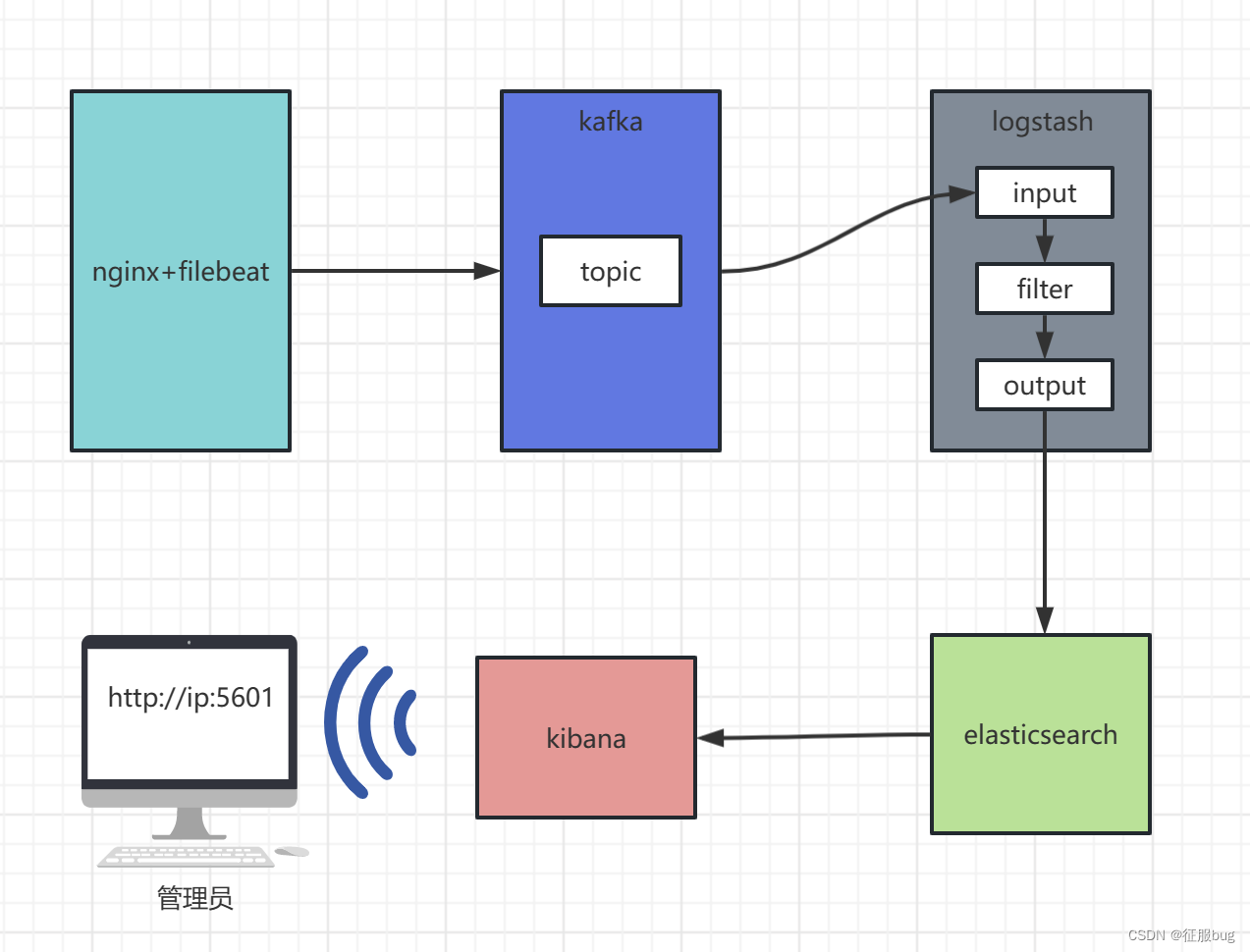

前言：我们使用nginx来模拟产生日志的服务，通过filebeat收集，交给kafka进行消息队列，再用logstash消费kafka集群中的数据，交给elasticsearch+kibana监控

一，环境

服务器环境：

192.168.2.1：elasticsearch
192.168.2.2：filebeat+nginx
192.168.2.3：kafka
192.168.2.4：logstash

二，服务的安装

elasticseatch+filebeat+kafka+logsstash（6.60）清华源下载：https://mirrors.tuna.tsinghua.edu.cn/elasticstack/6.x/yum/6.6.0/
zookeeper官网下载：https://zookeeper.apache.org/releases.html
kafka官网下载：https://kafka.apache.org/downloads

一，配置elasticsearch

1.验证java环境（存在无需安装）

java -version#验证java环境
安装JDK1.8：yum -y install java-1.8.0-openjdk.x86_64

2.安装elasticsearch

rpm -ivh /mnt/elk-6.6/elasticsearch-6.6.0.rpm

3.修改配置文件

vi /etc/elasticsearch/elasticsearch.yml
修改一下内容：
node.name: node-1                       #群集中本机节点名
network.host: 192.168.2.1,127.0.0.1 #监听的ip地址
http.port: 9200

4.开启elasticsearch

systemctl start elasticsearch

5.查看启动情况

[root@localhost ~]# netstat -anpt | grep java
tcp6       0      0192.168.2.1:9200        :::*                    LISTEN      12564/java
tcp6       0      0127.0.0.1:9200          :::*                    LISTEN      12564/java
tcp6       0      0192.168.2.1:9300        :::*                    LISTEN      12564/java
tcp6       0      0127.0.0.1:9300          :::*                    LISTEN      12564/java
tcp6       0      0192.168.2.1:9200        192.168.2.4:34428       ESTABLISHED 12564/java
tcp6       0      0192.168.2.1:9200        192.168.2.4:34436       ESTABLISHED 12564/java

二，配置filebeat+nginx

1.安装nginx

yum -y install nginx

2.安装filebeat

rpm -ivh /mnt/elk-6.6/filebeat-6.6.0-x86_64.rpm

3.修改filebeat配置文件

[root@localhost ~]# vi /etc/filebeat/filebeat.yml
添加一下内容：
filebeat.inputs:
- type: logenabled: truepaths:- /var/log/nginx/access.log
​
output.kafka:enabled: truehosts: ["192.168.2.3:9092"]   #kafka的IP地址和端口topic: test1                  #kafka的topic

4.开启服务

systemctl start nginx
systemctl start filebeat

三，配置kafka环境

1.安装java环境（存在无需安装）

yum -y install java-1.8.0-openjdk.x86_64

2.安装zookeeper

tar xf /mnt/zookeeper-3.4.9.tar.gz -C /usr/local/
mv /usr/local/zookeeper-3.4.9/ /usr/local/zookeeper
cd /usr/local/zookeeper/conf
cp zoo_sample.cfg zoo.cfg
vi zoo.cfg
mkdir data logs
echo 1 > data/myid
/usr/local/zookeeper/bin/zkServer.sh start
/usr/local/zookeeper/bin/zkServer.sh status

1.修改zookeeper配置文件

vi zoo.cfg
添加一下内容：
dataDir=/usr/local/zookeeper/data
dataLogDir=/usr/local/zookeeper/logs
server.1=192.168.2.3:3188:3288
保存退出
mkdir data logs
echo1 > data/myid

2.启动zookeeper文件

/usr/local/zookeeper/bin/zkServer.sh start
/usr/local/zookeeper/bin/zkServer.sh status

3.安装kafka

tar xf /mnt/kafka_2.11-2.2.1.tgz -C /usr/local/
mv /usr/local/kafka_2.11-2.2.1/ /usr/local/kafka

4.配置kafka

cd /usr/local/kafka/config/
cp server.properties server.properties.bak
vi server.properties
修改一下内容：
broker.id=1
listeners=PLAINTEXT://192.168.2.3:9092
zookeeper.connect=192.168.2.3:2181

5.启动kafka

cd /usr/local/kafka/
./bin/kafka-server-start.sh  ./config/server.properties   &

6.kafka创建topic

./bin/kafka-topics.sh --create--zookeeper localhost:2181 --replication-factor1--partitions1--topic test1   #创建名为test1的topic
./bin/kafka-topics.sh --list--zookeeper localhost:2181     #查看当前有哪些topic
./bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic test1 --from-beginning    #查看test1中有那些信息

四，配置logstash

1.安装java环境（存在可省略）

yum -y install java-1.8.0-openjdk.x86_64

2.安装logstash

rpm -ivh /mnt/elk-6.6/logstash-6.6.0.rpm

3.编写配置文件

vi /etc/logstash/conf.d/kafka.conf
input {kafka {bootstrap_servers => ["192.168.2.3:9092"]group_id => "es-test"topics => ["test1"]                         #与filebeat使用的topic一致codec => json}
}
​
output {kafka{codec => json {charset => "UTF-8"}topic_id => "test1"bootstrap_servers => "192.168.2.3:9092"
​}elasticsearch {hosts => "http://192.168.2.1:9200"index => "kafka‐%{+YYYY.MM.dd}"}
}

4.启动服务

/usr/share/logstash/bin/logstash -f /etc/logstash/conf.d/redis.conf

五，配置kibana

1.安装kiana

 rpm -ihv /mnt/elk-6.6/kibana-6.6.0-x86_64.rpm

2.配置kiana

vim /etc/kibana/kibana.yml
修改：
server.port: 5601
server.host: "192.168.2.5"
server.name: "db01"
elasticsearch.hosts: ["http://192.168.2.1:9200"]   #es服务器的ip，便于接收日志数据

3.开启kiana服务

systemctl start kibana

三，收集日志

一，kibana收集日志

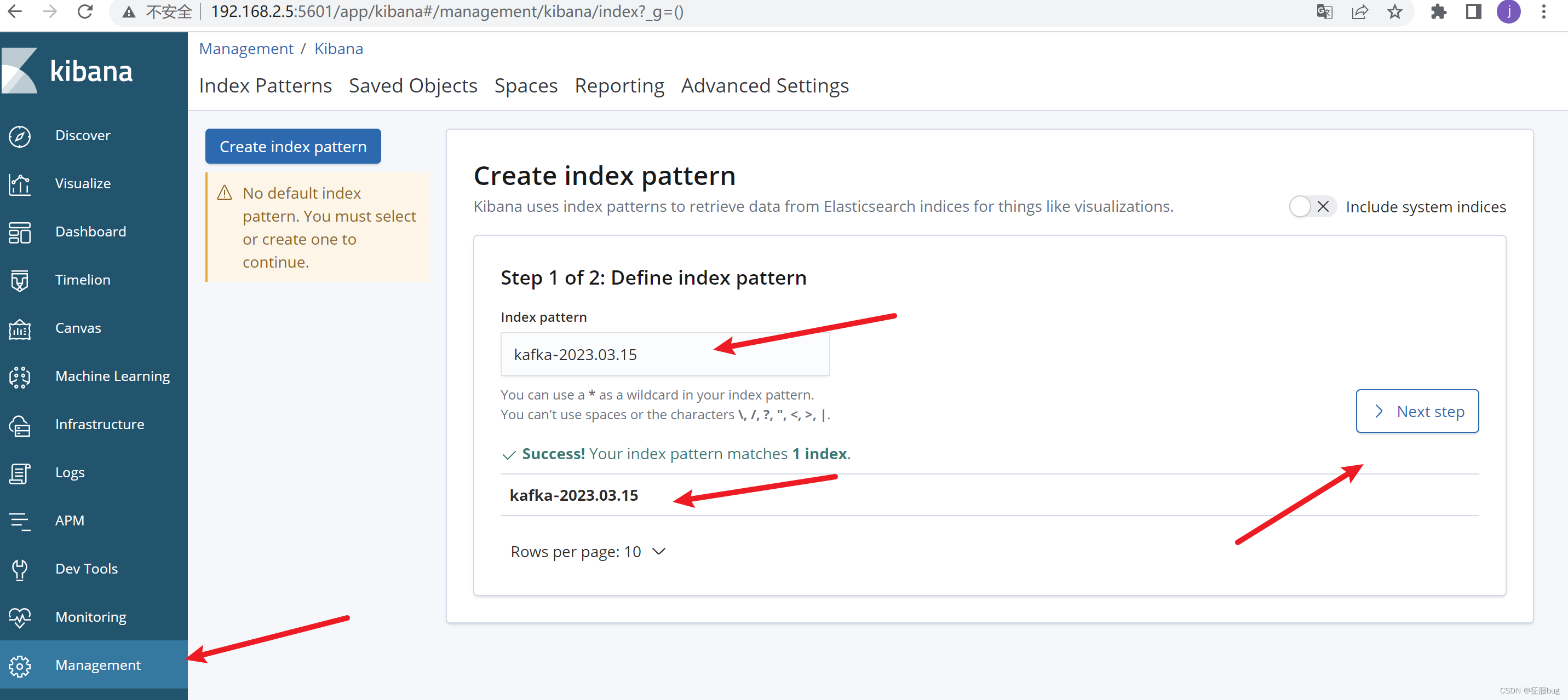

1. 添加日志信息

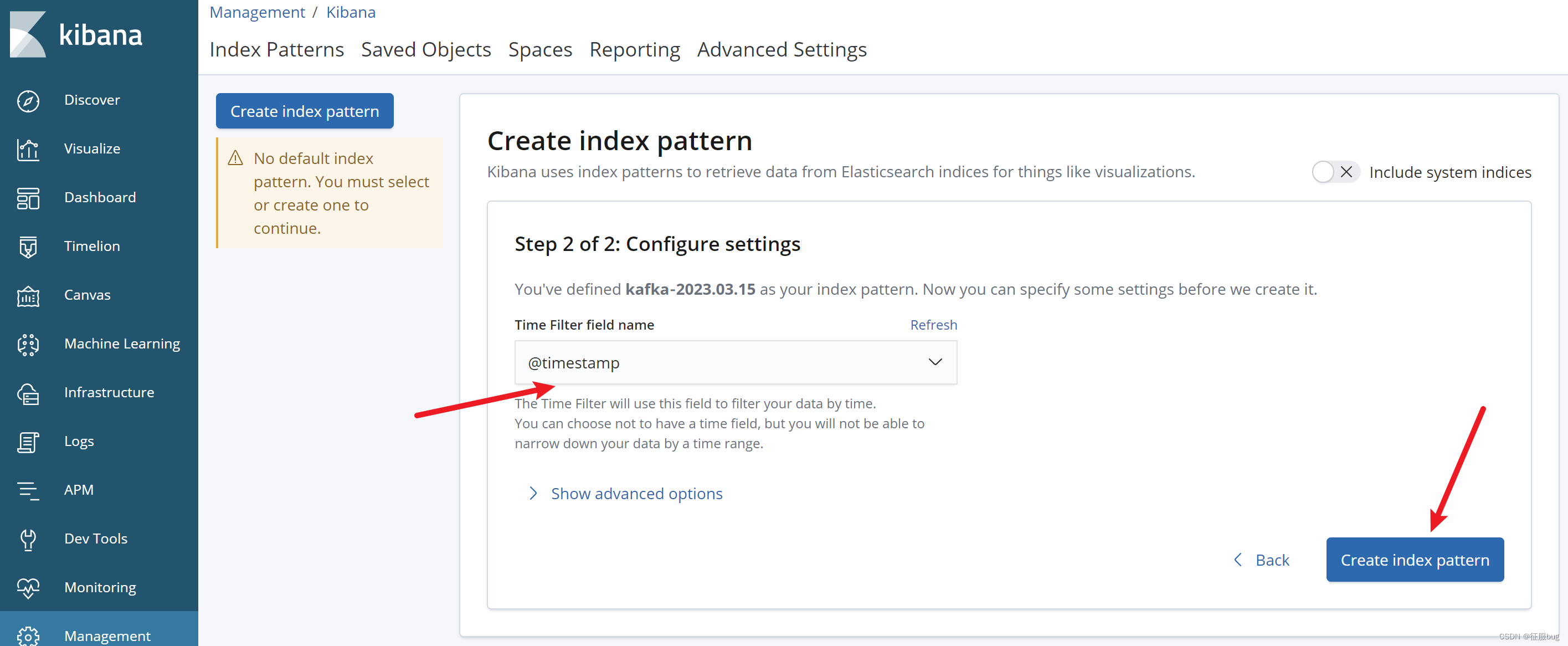

2. 选择日志格式

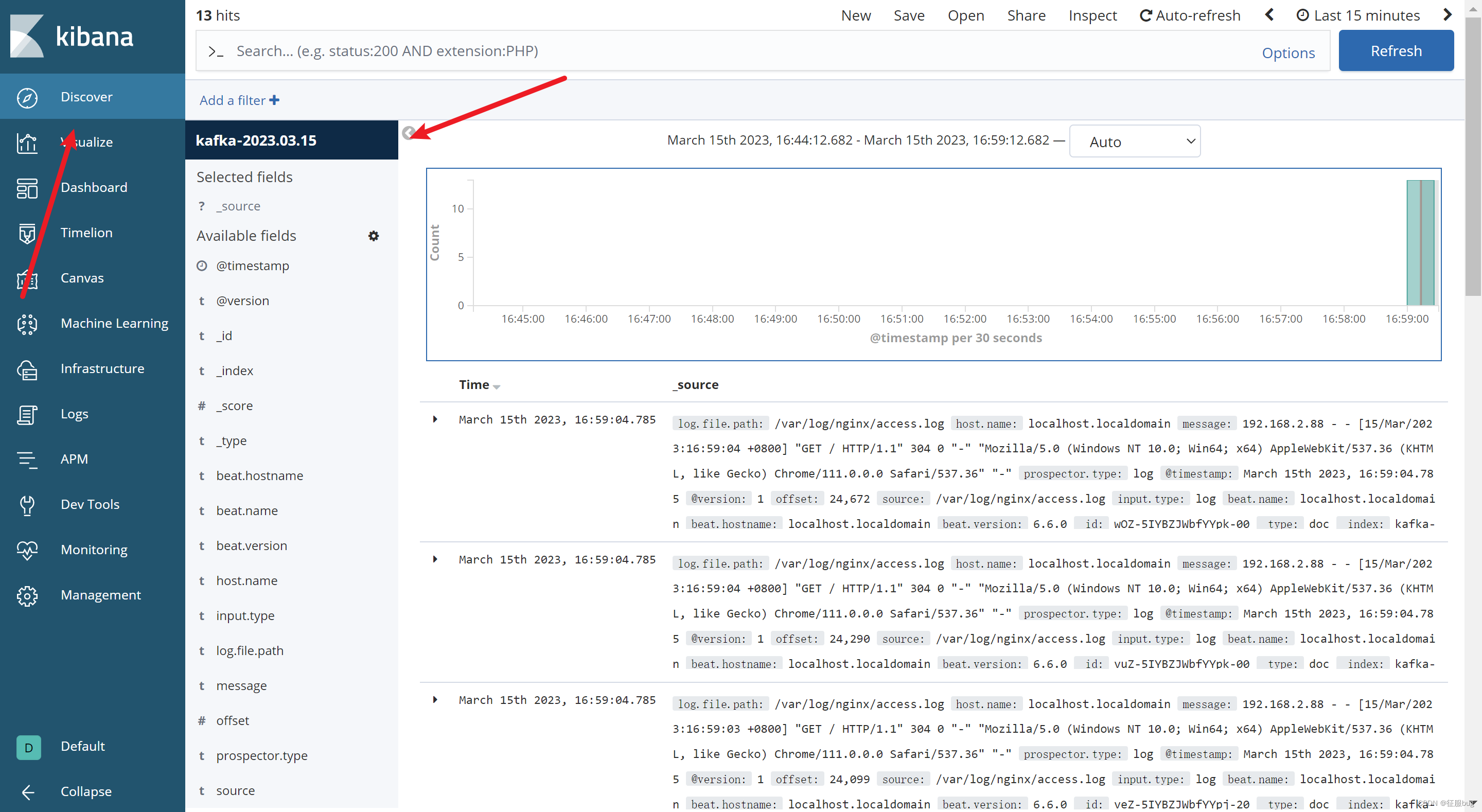

3.查看日志信息
