第一步创建SpringBoot项目的过程我就不在演示了！自己找找教程吧！

第二步，导入依赖：

 org.springframework.bootspring-boot-starter-quartzorg.springframework.bootspring-boot-starter-weborg.quartz-schedulerquartz2.3.0org.springframeworkspring-context-support5.3.8org.springframework.bootspring-boot-starter-jdbcmysqlmysql-connector-javaorg.springframework.bootspring-boot-starter-testtestorg.mybatis.spring.bootmybatis-spring-boot-starter2.2.2org.projectlomboklombok

第三步，启动类上加@EnableScheduling开启定时任务

@SpringBootApplication
@EnableScheduling
public class Quartz3Application {public static void main(String[] args) {SpringApplication.run(Quartz3Application.class, args);}}

第四步，创建QuartzService类

package com.example.quartz3.job;import java.util.*;import javax.annotation.PostConstruct;import lombok.extern.log4j.Log4j2;
import org.quartz.CronScheduleBuilder;
import org.quartz.CronTrigger;
import org.quartz.DateBuilder;
import org.quartz.DateBuilder.IntervalUnit;
import org.quartz.JobBuilder;
import org.quartz.JobDetail;
import org.quartz.JobExecutionContext;
import org.quartz.JobKey;
import org.quartz.Scheduler;
import org.quartz.SchedulerException;
import org.quartz.SimpleScheduleBuilder;
import org.quartz.Trigger;
import org.quartz.TriggerBuilder;
import org.quartz.TriggerKey;
import org.quartz.impl.matchers.GroupMatcher;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.quartz.QuartzJobBean;/*** 调度service*/
@Configuration
@EnableScheduling
@Log4j2
public class QuartzService {@Autowiredprivate Scheduler scheduler;@PostConstructpublic void startScheduler() {try {scheduler.start();} catch (SchedulerException e) {e.printStackTrace();}}/*** 增加一个job** @param jobClass     任务实现类* @param jobName      任务名称* @param jobGroupName 任务组名* @param jobTime      时间表达式 (这是每隔多少秒为一次任务)* @param jobTimes     运行的次数 （<0:表示不限次数）*/public void addJob(Class jobClass, String jobName, String jobGroupName, int jobTime,int jobTimes) {try {// 任务名称和组构成任务keyJobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(jobName, jobGroupName).build();// 使用simpleTrigger规则Trigger trigger = null;if (jobTimes < 0) {trigger = TriggerBuilder.newTrigger().withIdentity(jobName, jobGroupName).withSchedule(SimpleScheduleBuilder.repeatSecondlyForever(1).withIntervalInSeconds(jobTime)).startNow().build();} else {trigger = TriggerBuilder.newTrigger().withIdentity(jobName, jobGroupName).withSchedule(SimpleScheduleBuilder.repeatSecondlyForever(1).withIntervalInSeconds(jobTime).withRepeatCount(jobTimes)).startNow().build();}scheduler.scheduleJob(jobDetail, trigger);} catch (SchedulerException e) {e.printStackTrace();}}/*** 增加一个job** @param jobClass     任务实现类* @param jobName      任务名称* @param jobGroupName 任务组名* @param jobTime      时间表达式 （如：0/5 * * * * ? ）*/public void addJob(Class jobClass, String jobName, String jobGroupName, String jobTime,Integer userId) {try {// 创建jobDetail实例，绑定Job实现类// 指明job的名称，所在组的名称，以及绑定job类// 任务名称和组构成任务keyJobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(jobName, jobGroupName).usingJobData("userId",userId)//可以使用usingJobData添加传入的参数，辅助后面job任务的业务实现.build();// 定义调度触发规则// 使用cornTrigger规则// 触发器keyTrigger trigger = TriggerBuilder.newTrigger().withIdentity(jobName, jobGroupName).startAt(DateBuilder.futureDate(1, IntervalUnit.SECOND)).withSchedule(CronScheduleBuilder.cronSchedule(jobTime).inTimeZone(TimeZone.getTimeZone("Asia/Shanghai"))).startNow().build();// 把作业和触发器注册到任务调度中scheduler.scheduleJob(jobDetail, trigger);if(!scheduler.isShutdown()){scheduler.start();}} catch (Exception e) {e.printStackTrace();}}/*** 修改 一个job的 时间表达式*/public void updateJob(String jobName, String jobGroupName, String jobTime) {try {log.warn("Start update job ,job name is {}, jobCron is {}", jobName, jobTime);TriggerKey triggerKey = TriggerKey.triggerKey(jobName, jobGroupName);CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(CronScheduleBuilder.cronSchedule(jobTime).inTimeZone(TimeZone.getTimeZone("Asia/Shanghai"))).build();// 重启触发器scheduler.rescheduleJob(triggerKey, trigger);log.warn("finish update job!");} catch (SchedulerException e) {e.printStackTrace();}}/*** 删除任务一个job** @param jobName      任务名称* @param jobGroupName 任务组名*/public void deleteJob(String jobName, String jobGroupName) {try {scheduler.deleteJob(new JobKey(jobName, jobGroupName));} catch (Exception e) {e.printStackTrace();}}/*** 暂停一个job** @param jobName jobName* @param jobGroupName jobName*/public void pauseJob(String jobName, String jobGroupName) {try {JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);scheduler.pauseJob(jobKey);} catch (SchedulerException e) {e.printStackTrace();}}/*** 恢复一个job** @param jobName jobName* @param jobGroupName jobGroupName*/public void resumeJob(String jobName, String jobGroupName) {try {JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);scheduler.resumeJob(jobKey);} catch (SchedulerException e) {e.printStackTrace();}}/*** 立即执行一个job** @param jobName jobName* @param jobGroupName jobGroupName*/public void runAJobNow(String jobName, String jobGroupName) {try {JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);scheduler.triggerJob(jobKey);} catch (SchedulerException e) {e.printStackTrace();}}/*** 获取所有计划中的任务列表** @return List*/public List> queryAllJob() {List> jobList = null;try {GroupMatcher matcher = GroupMatcher.anyJobGroup();Set jobKeys = scheduler.getJobKeys(matcher);jobList = new ArrayList>();for (JobKey jobKey : jobKeys) {List triggers = scheduler.getTriggersOfJob(jobKey);for (Trigger trigger : triggers) {Map map = new HashMap<>();map.put("jobName", jobKey.getName());map.put("jobGroupName", jobKey.getGroup());map.put("description", "触发器:" + trigger.getKey());Trigger.TriggerState triggerState = scheduler.getTriggerState(trigger.getKey());map.put("jobStatus", triggerState.name());if (trigger instanceof CronTrigger) {CronTrigger cronTrigger = (CronTrigger) trigger;String cronExpression = cronTrigger.getCronExpression();map.put("jobTime", cronExpression);}jobList.add(map);}}} catch (SchedulerException e) {e.printStackTrace();}return jobList;}/*** 获取所有正在运行的job** @return List*/public List> queryRunJob() {List> jobList = null;try {List executingJobs = scheduler.getCurrentlyExecutingJobs();jobList = new ArrayList>(executingJobs.size());for (JobExecutionContext executingJob : executingJobs) {Map map = new HashMap();JobDetail jobDetail = executingJob.getJobDetail();JobKey jobKey = jobDetail.getKey();Trigger trigger = executingJob.getTrigger();map.put("jobName", jobKey.getName());map.put("jobGroupName", jobKey.getGroup());map.put("description", "触发器:" + trigger.getKey());Trigger.TriggerState triggerState = scheduler.getTriggerState(trigger.getKey());map.put("jobStatus", triggerState.name());if (trigger instanceof CronTrigger) {CronTrigger cronTrigger = (CronTrigger) trigger;String cronExpression = cronTrigger.getCronExpression();map.put("jobTime", cronExpression);}jobList.add(map);}} catch (SchedulerException e) {e.printStackTrace();}return jobList;}}

第五步，创建自己的Job类实现自己的业务逻辑

package com.example.quartz3.job;import com.example.quartz3.domain.User;
import com.example.quartz3.mapper.UserMapper;
import lombok.SneakyThrows;
import lombok.extern.log4j.Log4j2;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.stereotype.Component;import java.util.Date;/*** 定时全量备份job*/
@Component
@Log4j2
public class SomThingTimeJob extends QuartzJobBean {@Autowiredprivate UserMapper userMapper;@Autowiredprivate QuartzService quartzService;@SneakyThrows@Overrideprotected void executeInternal(JobExecutionContext context) throws JobExecutionException {log.warn("start SomThingTimeJob !! ");//写自己要实现的业务逻辑Integer userId = (Integer) context.getJobDetail().getJobDataMap().get("userId");//可以使用getJobDetail的getJobDataMap方法获取传入的其他参数辅助自己的业务实现User users = userMapper.selectUserById(userId);System.out.println(new Date()+"用户姓名"+users.getUserName());log.warn("finish SomThingTimeJob !! ");}
}

第六步，Cron表达式转换工具类

package com.example.quartz3.utils;import java.text.SimpleDateFormat;
import java.util.Date;/*** @author 一个达不刘* cron表达式生成工具类**/
public class CronUtil {/*** 生成指定格式日期字符** @param date       日期* @param dateFormat : e.g:yyyy-MM-dd HH:mm:ss* @return formatTimeStr*/public static String formatDateByPattern(Date date, String dateFormat) {dateFormat = dateFormat == null ? "yyyy-MM-dd HH:mm:ss" : dateFormat;SimpleDateFormat sdf = new SimpleDateFormat(dateFormat);return date != null ? sdf.format(date) : null;}/*** 生成cron表达式 ss mm HH dd MM ? yyyy* convert Date to cron ,eg.  "0 06 10 15 1 ? 2014"** @param date : 时间点*/public static String getCron(Date date) {String dateFormat = "ss mm HH dd MM ? yyyy";return formatDateByPattern(date, dateFormat);}/*** 生成cron表达式 ss mm HH dd MM ?* convert Date to cron ,eg.  "0 06 10 15 1 ?"** @param date : 时间点* @param type : 类型 日/周/月*/public static String getLoopCron(Date date, String type, Integer week, Integer day) {String dateFormat = "ss mm HH";//  dd MM ?String cron = formatDateByPattern(date, dateFormat);switch (type) {case "Day":return cron + " * * ?";case "Week":return cron + " ? * " + getCurrentWeek(week);case "Month":return cron + " " + day + " * ?";default:return "false";}}/*** 获取当前星期的字符 MON TUE WED THU FRI SAT SUN** @param week : 周 1 2 3 4 5 6 7* @return 星期字符*/public static String getCurrentWeek(Integer week) {String[] weeks = {"MON", "TUE", "WED", "THU", "FRI", "SAT", "SUN"};return weeks[week - 1];}public static void main(String[] args) {Date date = new Date();//String dateFormat = "ss mm HH dd MM ? yyyy";//String cron = formatDateByPattern(date, dateFormat);//System.out.println("原始:" + cron);////String day = formatDateByPattern(date, "ss mm HH");//System.out.println("日报:" + day + " * * ?");//0 15 10 ? * MON 每周一上午10点15分动参为 周//String week = formatDateByPattern(date, "ss mm HH");//System.out.println("周报:" + week + " ? * MON");//0 15 9 10 * ? 每月10号9点15分动参为 号//String month = formatDateByPattern(date, "ss mm HH");//System.out.println("月报:" + month + " 10 * ?");}
}

第七步，创建字符串转换成类的转换器

package com.example.quartz3.utils;import org.springframework.scheduling.quartz.QuartzJobBean;/*** @author 一个达不刘* @date 2023/3/20 18:34*/
public class ClassUtil {@SuppressWarnings("unchecked")public static Class getClass(String classname) throws Exception {Class class1 = Class.forName(classname);return (Class) class1;}
}

为什么使用这个转换器的原因是创建job的时候

public void addJob(Class jobClass, String jobName, String jobGroupName, int jobTime,int jobTimes)

jobClass是一个.class的对象，但是传入的参数不可能是一个.class的对象，所以需要一个转换器

第八步，创建controller控制层

package com.example.quartz3.controller;import com.example.quartz3.job.QuartzService;
import com.example.quartz3.utils.ClassUtil;
import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.*;/*** @author 钟于一个达不刘*/
@RestController
@RequestMapping(value = "/job")
public class JobController {@Autowiredprivate QuartzService quartzService;/*** @param jobClassName* @param jobGroupName* @param cronExpression* @throws Exception*/@PostMapping(value = "/addjob")public void addjob(@RequestParam(value = "jobClassName") String jobClassName,@RequestParam(value = "jobGroupName") String jobGroupName,@RequestParam(value = "cronExpression") String cronExpression,@RequestParam("userId") Integer userId) throws Exception {quartzService.addJob(ClassUtil.getClass(jobClassName), jobClassName, jobGroupName, cronExpression,userId);}/*** @param jobClassName* @param jobGroupName* @throws Exception*/@PostMapping(value = "/pausejob")public void pausejob(@RequestParam(value = "jobClassName") String jobClassName,@RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {quartzService.pauseJob(jobClassName, jobGroupName);}/*** @param jobClassName* @param jobGroupName* @throws Exception*/@PostMapping(value = "/resumejob")public void resumejob(@RequestParam(value = "jobClassName") String jobClassName,@RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {quartzService.resumeJob(jobClassName, jobGroupName);}/*** @param jobClassName* @param jobGroupName* @throws Exception*/@PostMapping(value = "/deletejob")public void deletejob(@RequestParam(value = "jobClassName") String jobClassName,@RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {quartzService.deleteJob(jobClassName, jobGroupName);}}

第九步，创建User实体类

package com.example.quartz3.mapper;import com.example.quartz3.domain.User;
import org.apache.ibatis.annotations.Mapper;import java.util.List;/*** @author 一个达不刘* @date 2023/3/19 19:28*/
@Mapper
public interface UserMapper {List selectList(Object o);int insertUser(User user);User selectUserById(int id);
}

第十步，创建mapper文件进行测试

package com.example.quartz3.mapper;import com.example.quartz3.domain.User;
import org.apache.ibatis.annotations.Mapper;import java.util.List;/*** @author 一个达不刘* @date 2023/3/19 19:28*/
@Mapper
public interface UserMapper {List selectList(Object o);int insertUser(User user);User selectUserById(int id);
}

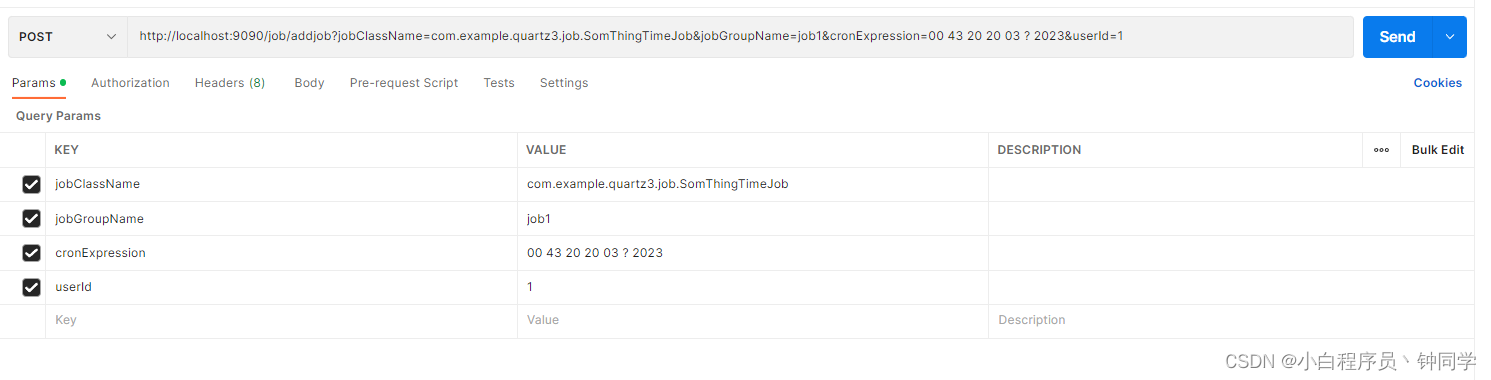

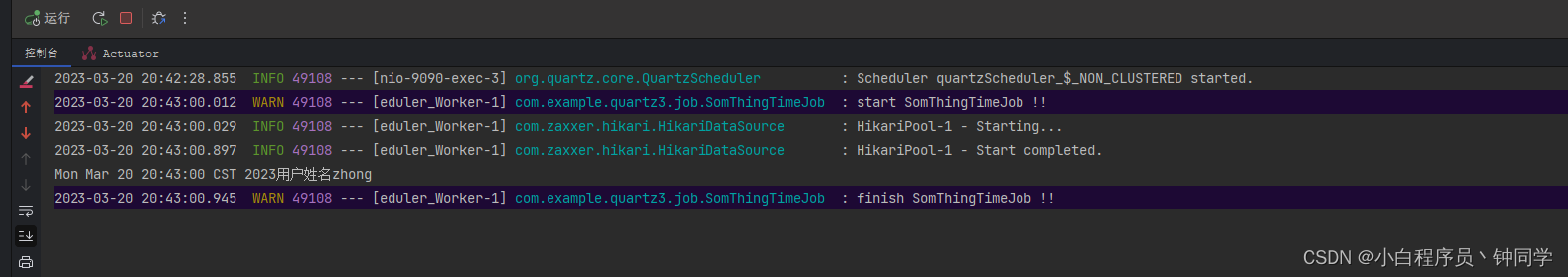

第十一步，测试
