IPv6手工隧道实验及配置

• • 拓扑图
  • 设备配置
  • • AR1
• • • AR2
• • • AR3
• • • AR4
• • • AR5
• • 实验现象

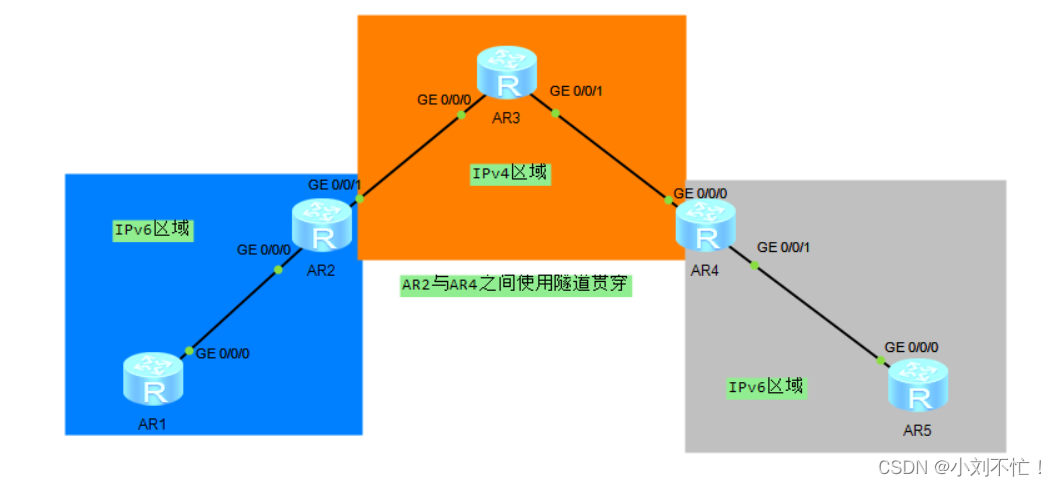

拓扑图

其中IPv6区域使用OSPFv3协议进行打通。

设备配置

AR1

ipv6

ospfv3 1
router-id 1.1.1.1

interface GigabitEthernet0/0/0
ipv6 enable
ipv6 address 2001:12::1/64
ospfv3 1 area 0.0.0.0

interface LoopBack0
ipv6 enable
ipv6 address 1::1/128
ospfv3 1 area 0.0.0.0

AR2

ipv6

ospfv3 1
router-id 2.2.2.2

interface GigabitEthernet0/0/0
ipv6 enable
ipv6 address 2001:12::2/64
ospfv3 1 area 0.0.0.0

interface GigabitEthernet0/0/1
ip address 23.1.1.2 255.255.255.0

interface LoopBack0
ipv6 enable
ip address 2.2.2.2 255.255.255.255
ipv6 address 2::2/128
ospfv3 1 area 0.0.0.0

interface Tunnel0/0/0
ipv6 enable
ipv6 address 2001:24::2/64
ospfv3 1 area 0.0.0.0
tunnel-protocol gre
source 2.2.2.2
destination 4.4.4.4

ospf 1
area 0.0.0.0
network 2.2.2.2 0.0.0.0
network 23.1.1.0 0.0.0.255

AR3

interface GigabitEthernet0/0/0
ip address 23.1.1.3 255.255.255.0

interface GigabitEthernet0/0/1
ip address 34.1.1.3 255.255.255.0

interface LoopBack0
ip address 3.3.3.3 255.255.255.255

ospf 1
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 23.1.1.0 0.0.0.255
network 34.1.1.0 0.0.0.255

AR4

ipv6

ospfv3 1
router-id 4.4.4.4

interface GigabitEthernet0/0/0
ip address 34.1.1.4 255.255.255.0

interface GigabitEthernet0/0/1
ipv6 enable
ipv6 address 2001:45::4/64
ospfv3 1 area 0.0.0.0

interface LoopBack0
ipv6 enable
ip address 4.4.4.4 255.255.255.255
ipv6 address 4::4/128
ospfv3 1 area 0.0.0.0

interface Tunnel0/0/0
ipv6 enable
ipv6 address 2001:24::4/64
ospfv3 1 area 0.0.0.0
tunnel-protocol gre
source 4.4.4.4
destination 2.2.2.2

ospf 1
area 0.0.0.0
network 4.4.4.4 0.0.0.0
network 34.1.1.0 0.0.0.255

AR5

ipv6

ospfv3 1
router-id 5.5.5.5

ospfv3 2
router-id 5.5.5.5

interface GigabitEthernet0/0/0
ipv6 enable
ipv6 address 2001:45::5/64
ospfv3 1 area 0.0.0.0

interface LoopBack0
ipv6 enable
ipv6 address 5::5/128
ospfv3 1 area 0.0.0.0

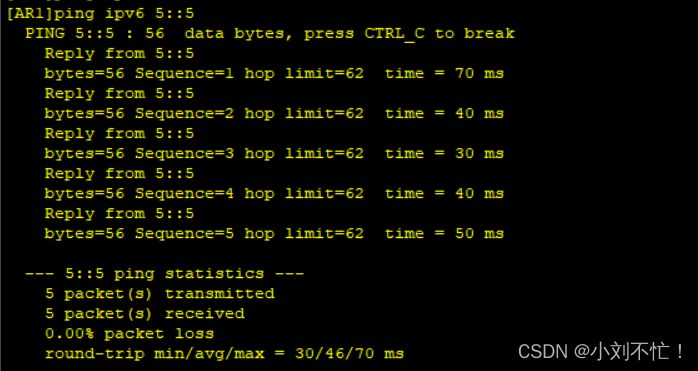

实验现象
